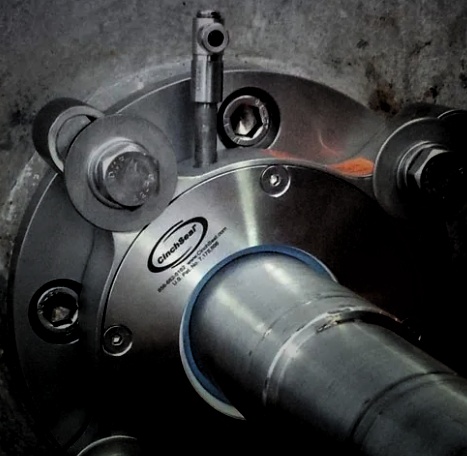

CINCHSEAL is a unique and problem-solving sealing device designed to seal powders and slurries on process equipment.
Regular gland packing seals and lip seals have created lots of issues – product leakage/product loss, product contamination, maintenance burden, production downtime, shaft damage, bearing failure, and hazardous environment.
CINCHSEAL is an effective shaft seal that eliminates product leakage/product loss, eliminates housekeeping issues, prevents bearing and equipment failure, and downtime.
CINCHSEAL in Figures
30 Years in Business
72 Global Countries
120 OEM Partners
5000+ Successful Custom Seals
8000+ Satisfied Customers
Equipment We Seal:
Screw Conveyors (horizontal, incline, vertical), Mixers/Blenders: Ribbon Blenders, Paddle Mixers, Sigma Blades Mixers, Vertical Mixers, Tilt Bowl Dough Mixers, Cookers (Meat and Cheese), Dryers, Side Entry Agitators, Rotary Airlock Valve, Bucket Elevators, Choppers
Product We Seal:
Powders, Flour, Spices, Seasonings, Flavorings, Cheese, Dairy Mixes, Sugar, Chocolate, Doughs in making Cookies, Crackers, and Bread, Jam and Candy Fillings, Meat and Poultry, Pet Food (dry and wet), Pharmaceuticals, Cosmetics, Personal Care, Chemicals (e.g. TiO2, Silicone, Pesticides), Cement, Gypsum, Concrete, Li-ion Battery
Our Customers (some):
End-user ; Cargill, Nestle, Kraft Foods, Tyson, Hershey Foods, BASF
OEM; WAM, Peerless, KWS, PerMix, Heat and Control
Benefits of CINCHSEAL
- Cost savings: Factors like eliminating product waste, unscheduled maintenance costs and downtime, premature bearing failure, and shaft damage add up to an impressive ROI.
- FDA Approved: The parts used in making our seals are FDA approved for food contact.
- No Damage to Shaft: CinchSeal unique design eliminates any chance of damaging the rotating shafts like you see with traditional gland packing and lip seals.
- Runout: Our seals can handle up to ¼” (6.35mm) shaft runout without losing sealing on the shaft.
- Health and Safety: Our seals prevent powder and dust leakage that can cause hazardous work environment and explosion.
- Repairable: Our seals are designed to be rebuilt with an inexpensive repair kit.
CINCHSEAL consists of three parts:
- Silicone Elastomer Boot
Grips and seals the shaft without damaging or wearing the shaft
Drives the wearable PTFE seal faces
Can withstand temperature up to 218 C
FDA approved – handle 95% of industrial applications (can be made out of other materials e.g. VITON, AFLAS, EPDM, than Silicone)
- PTFE Rotor Cups
Made out of special mineral filled with 15% Binding Agent “Wollastonite” which assists friction and wear
FDA approved also
- Housing and Plates
Seal housing and endplates are available in Aluminium, Polypropylene, SS304, and SS316
CINCHSEAL requires Air Purging for better performance
Why we purge air inside our seals
- Create a higher positive pressure in the seal chamber to create a natural air barrier that keeps product out of the seal.
2. The air pressure creates a downward force on the elastomer and an axial force on the rotating seal faces against the stationary faces, which helps maintain a tight seal.
3. Air purge cools the rotating seal faces by reducing the temperature caused by friction.
Seal Capabilities
Temperature: Silicone and PTFE internal parts are good up to 218 C
Pressure:
Up to 28” vacuum
Up to 45 psi (3 bar) operating pressure
Purge seal with 5-7 psi (0.3-0.5 bar) of air above operating vessel pressure for optimum performance
Flow Rate:
Typical flow is less than 0.028 M3/min with air regulator set at 5 psi
Speed: Max. surface speed approximately at 82 m/min (5” shaft dia.@ 200 rpm*)
*We have had a successful case up to 400 rpm.
